Indexable End Mills >ARP >ARP5PR3203AM1640

Indexable End Mills

ARP
（Round insert cutter for difficult-to-cut materials）

ARP5PR3203AM1640

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

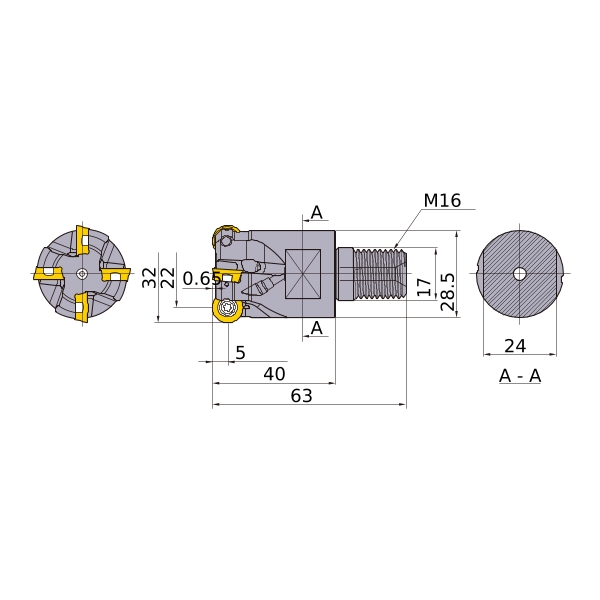

A1 1
AZ 0.65
DC 22
DCX 32
DCON 17
DCSFMS 28.5
RMPX 1.9°
LF 40
OAL 63
S10 24
APMX 5
GAMP +4°
GAMF -7°
WT 0.16
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
