Indexable End Mills >VPX300 >VPX300R2502SA25S

Indexable End Mills

VPX300
(Multi-functional Cutter for High Efficiency Machining)

VPX300R2502SA25S

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

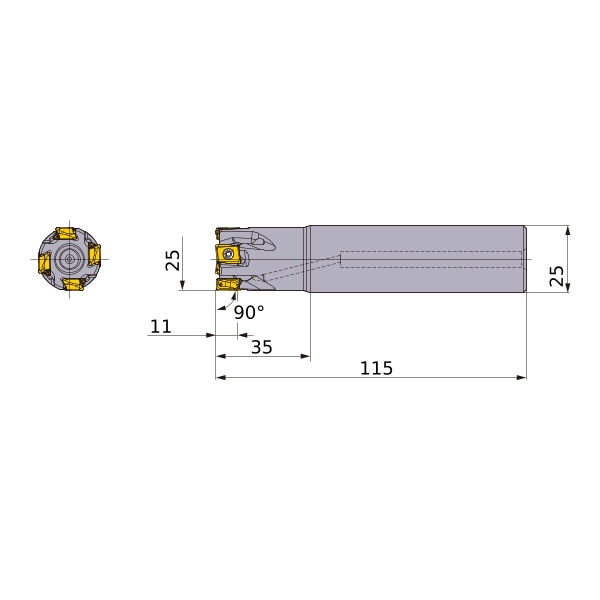

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 25
DCON 25
KAPR 90°
RMPX 2.13°
LF 115
LH 35
APMX 11
GAMP -8.5°
GAMF -29°
WT 0.38
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 2
RPMX 24100
2D Model (DXF)
CAD data name Download
VPX300R2502SA25S
CAD

3D Detail Model (STP,STL)
CAD data name Download
VPX300R2502SA25S
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VPX300R2502SA25S_MR0_2
0.2 CAD
VPX300R2502SA25S_MR0_4
0.4 CAD
VPX300R2502SA25S_MR0_8
0.8 CAD
VPX300R2502SA25S_MR1_0
1 CAD
VPX300R2502SA25S_MR1_2
1.2 CAD
VPX300R2502SA25S_MR1_6
1.6 CAD
VPX300R2502SA25S_MR2_0
2 CAD
VPX300R2502SA25S_MR2_4
2.4 CAD
VPX300R2502SA25S_MR3_0
3 CAD
VPX300R2502SA25S_MR3_2
3.2 CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
