Indexable End Mills > VPX200_LONG

Indexable End Mills

VPX200_LONG
（Multi-functional Cutter for High Efficiency Machining）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

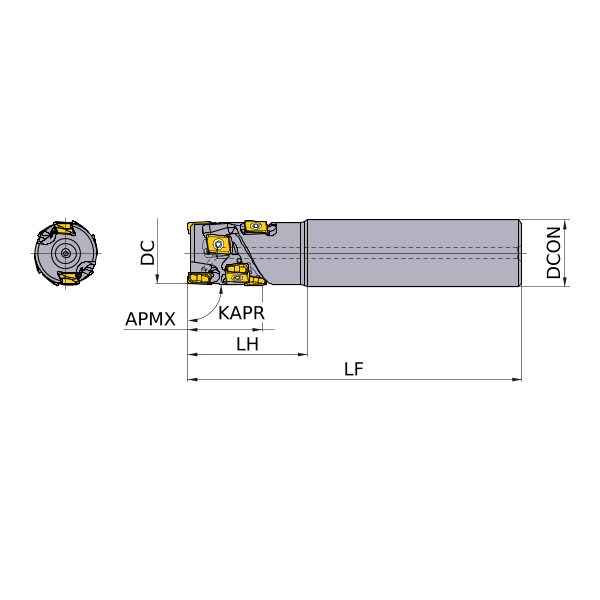

Type1 [Expand]

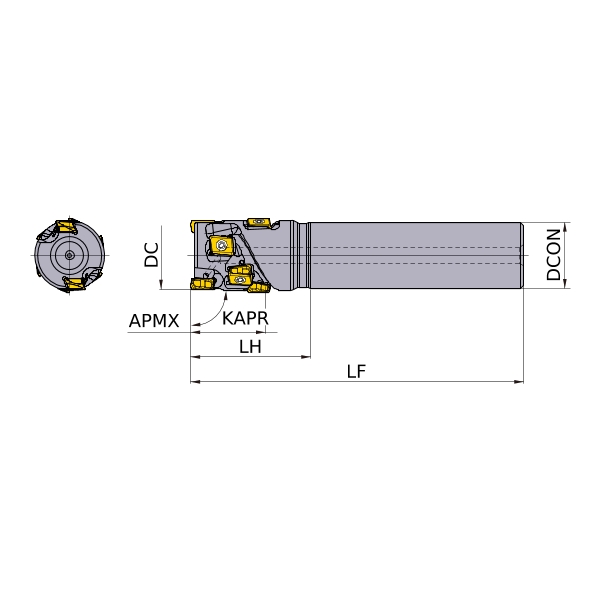

Type2 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
VPX200R202SA20S01404 Type1 R
VPX200R222SA20S01404 Type2 R
VPX200R252SA25S02106 Type1 R
VPX200R252SA25S02808 Type1 R
VPX200R282SA25S02106 Type2 R
VPX200R282SA25S02808 Type2 R
VPX200R322SA32S02808 Type1 R
VPX200R322SA32S03510 Type1 R
VPX200R323SA32S02812 Type1 R
VPX200R323SA32S03515 Type1 R
VPX200R352SA32S02808 Type2 R
VPX200R352SA32S03510 Type2 R
VPX200R353SA32S02812 Type2 R
VPX200R353SA32S03515 Type2 R
VPX200R403SA32S03515 Type2 R
VPX200R403SA32S04218 Type2 R
VPX200R404SA32S03520 Type2 R
VPX200R404SA32S04224 Type2 R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
4 2 2 20 14 30 100 20 -6° 0.21   90°
4 2 2 22 14 30 115 20 -6° 0.26   90°
6 2 2 25 21 35 115 25 -6° 0.39   90°
8 2 2 25 28 45 125 25 -6° 0.41   90°
6 2 2 28 21 35 115 25 -6° 0.4   90°
8 2 2 28 28 45 125 25 -6° 0.43   90°
8 2 2 32 28 45 125 32 -6° 0.68   90°
10 2 2 32 35 50 130 32 -6° 0.7   90°
12 3 3 32 28 45 125 32 -6° 0.67   90°
15 3 3 32 35 50 130 32 -6° 0.68   90°
8 2 2 35 28 45 125 32 -6° 0.72   90°
10 2 2 35 35 50 130 32 -6° 0.74   90°
12 3 3 35 28 45 125 32 -6° 0.71   90°
15 3 3 35 35 50 130 32 -6° 0.73   90°
15 3 3 40 35 50 130 32 -6° 0.81   90°
18 3 3 40 42 60 140 32 -6° 0.88   90°
20 4 4 40 35 50 130 32 -6° 0.8   90°
24 4 4 40 42 60 140 32 -6° 0.86   90°
  1

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
