Indexable End Mills >WJX09 >WJX09R2803SA25L
WJX09
(Double-sided Insert Type High Feed Radius Milling Cutter)
The actual product may differ from the displayed image.

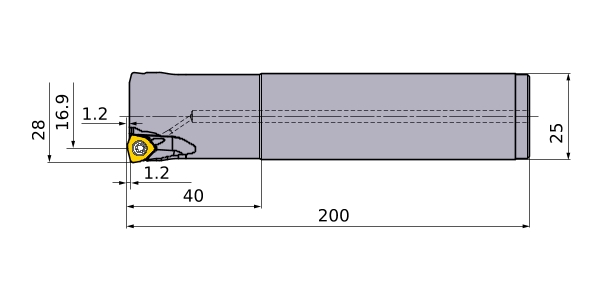

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
AZ | 1.2 |
DC | 16.9 |
DCX | 28 |
DCON | 25 |
RMPX | 5.6° |
LF | 200 |
LH | 40 |
APMX | 1.2 |
GAMP | -7° |
GAMF | -11° |
Cutting item count: CICT | 3 |
Peripheral effective cutting edge count: ZEFP | 3 |
RPMX | 30300 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
