External Cutting >MTQN >MTQNR2020K16N

External Cutting

MTQN


MTQNR2020K16N

Product Information

  • High rigidity due to double clamp structure.
  • Simple insert exchange.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

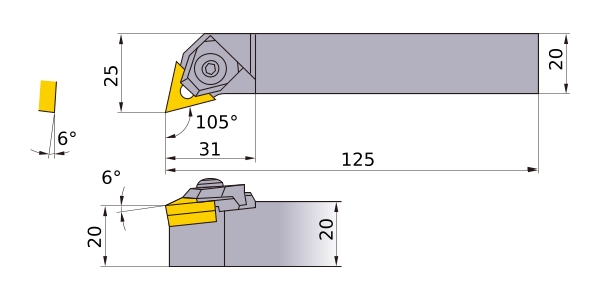

B 20
KAPR 105°
LF 125
LH 31
WF 25
H 20
HF 20
GAMP 6°
GAMF 6°
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__1604
