External Cutting >SCLC-SM >SCLCL1616M09-SM

External Cutting

SCLC-SM


SCLCL1616M09-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

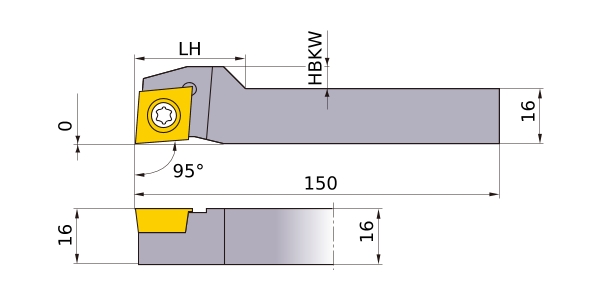

ANSI SCLCL1616M09-SM
Hand L
Stock
Unit of Length M
B 16
KAPR 95°
LF 150
H 16
HF 16
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__09T3
2D Model (DXF)
CAD data name Download
SCLCL1616M09-SM
CAD
