External Cutting >STFE >STFEL2525M16

External Cutting

STFE


STFEL2525M16

Product Information

  • Screw-on type
  • High rake and good sharpness.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

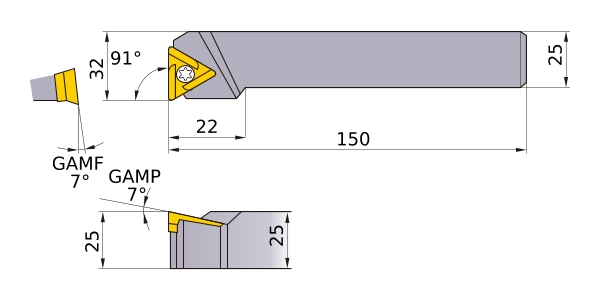

B 25
KAPR 91°
LF 150
LH 22
WF 32
H 25
HF 25
Peripheral effective cutting edge count: ZEFP 1
Insert Number TE__1603
