Face Cutter >BRP >BRP6PR06305B
BRP6
The actual product may differ from the displayed image.

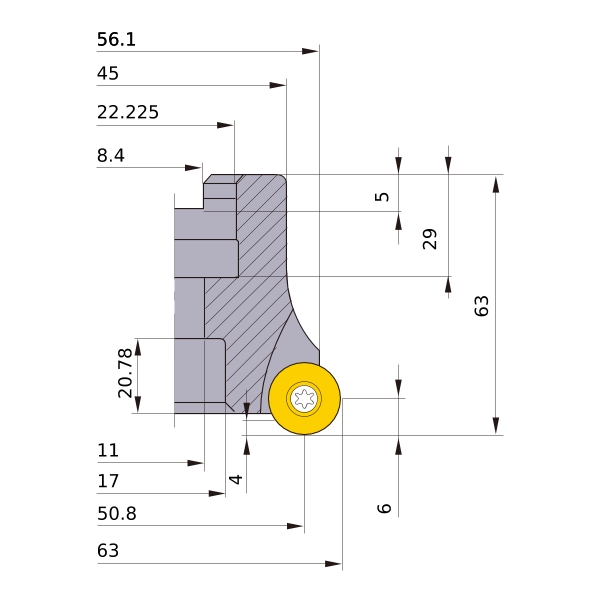

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
AZ | 4 |
DC | 50.8 |
DCX | 63 |
DCON | 22.225 |
BD | 56.1 |
DCSFMS | 45 |
DAH | 11 |
DCCB | 17 |
L8 | 5 |
LF | 63 |
CBDP | 29 |
LCCB | 20.78 |
KWW | 8.4 |
APMX | 6 |
GAMP | +5° |
GAMF | 0° |
WT | 0.7 |
Peripheral effective cutting edge count: ZEFP | 5 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
