Face Cutter >FE404 >FE404L0816Q
FE404
(HIGH FEED CUTTING FOR CAST IRON)
The actual product may differ from the displayed image.

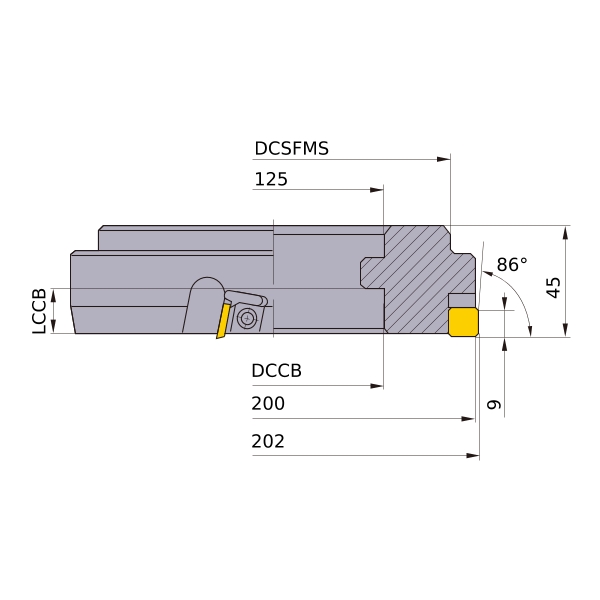

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | L |
Stock | ![]() |
Unit of Length | M |
DC | 200 |
DCX | 202 |
DCON | 125 |
KAPR | 86° |
LF | 45 |
CBDP | 25 |
APMX | 9 |
WT | 6.1 |
Peripheral effective cutting edge count: ZEFP | 16 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
