Face Cutter >FE404 >FE404L1020T

Face Cutter

FE404
（HIGH FEED CUTTING FOR CAST IRON）

FE404L1020T

Product Information

  • 21°positive insert.
  • High rake and high relief angle.
  • Suitable for light alloy machining.
  • Easy tool exchange.

The actual product may differ from the displayed image.

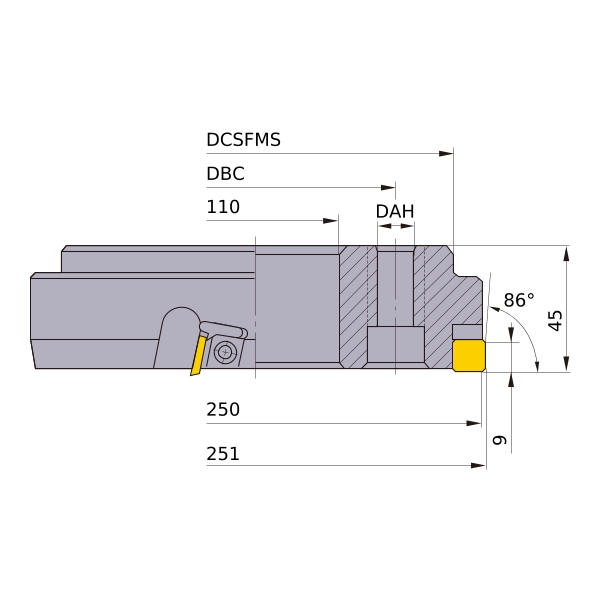

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
DC 250
DCX 251
DCON 110
KAPR 86°
LF 45
APMX 9
WT 9.9
Peripheral effective cutting edge count: ZEFP 20

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition

  • Sold Separately

  • Insert for Rotating Tools

  • Spare Parts
