Face Cutter >FE404 >FE404R2040Q

Face Cutter

FE404
（HIGH FEED CUTTING FOR CAST IRON）

FE404R2040Q

Product Information

  • 21°positive insert.
  • High rake and high relief angle.
  • Suitable for light alloy machining.
  • Easy tool exchange.

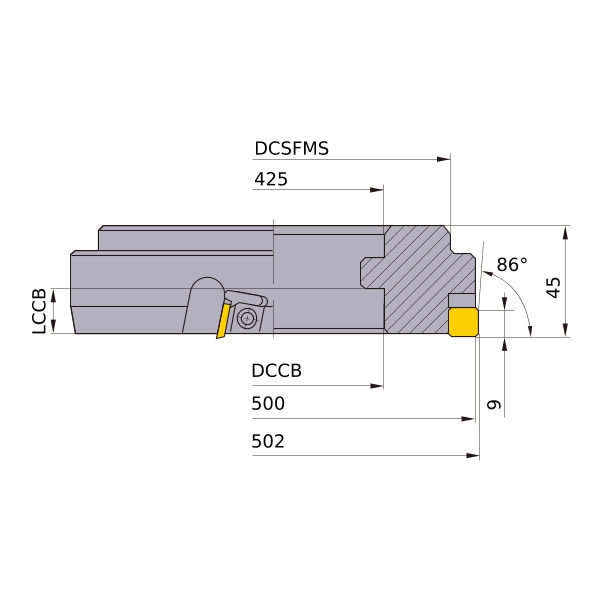

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 500
DCX 502
DCON 425
KAPR 86°
LF 45
CBDP 25
APMX 9
WT 16.2
Peripheral effective cutting edge count: ZEFP 40
2D Model (DXF)
CAD data name Download
FE404R2040Q
