Face Cutter >FP590 >FP590R1236T
FP590
(HIGH FEED CUTTING FOR CAST IRON)
The actual product may differ from the displayed image.

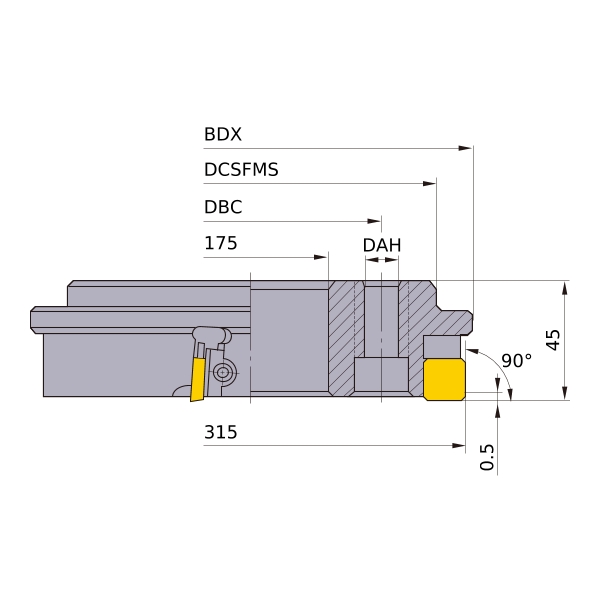

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
DC | 315 |
DCON | 175 |
BD | 325 |
KAPR | 90° |
LF | 45 |
APMX | 0.5 |
GAMP | +5° |
GAMF | 0° |
WT | 12.1 |
Peripheral effective cutting edge count: ZEFP | 36 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
Sold Separately
Insert for Rotating Tools
Spare Parts
