Face Cutter >OCTACUT >OCTACUT1257ER

Face Cutter

OCTACUT


OCTACUT1257ER

Product Information

  • Small insert type.
  • Multi functional milling.
  • standerd insert
  • 20°positive insert.
  • Compatible with 8-corner use insert and round type insert.
  • Capable of multiple functions.

The actual product may differ from the displayed image.

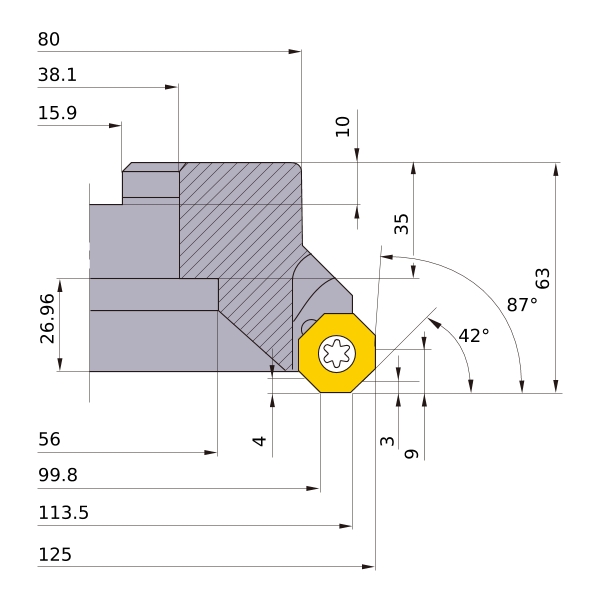

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
A1 3
AZ 4
DC 113.5
DCX 125
DCON 38.1
DCSFMS 80
DCCB 56
KAPR 42°
RMPX 2.21
L8 10
LF 63
CBDP 35
LCCB 26.96
KWW 15.9
APMX 9
DCINX 99.8
GAMP 13°
GAMF -4°
WT 1.8
Peripheral effective cutting edge count: ZEFP 7
