Face Cutter >AJX >AJX14R10006D

Face Cutter

AJX14
（MULTI FUNCTIONAL MILLING）

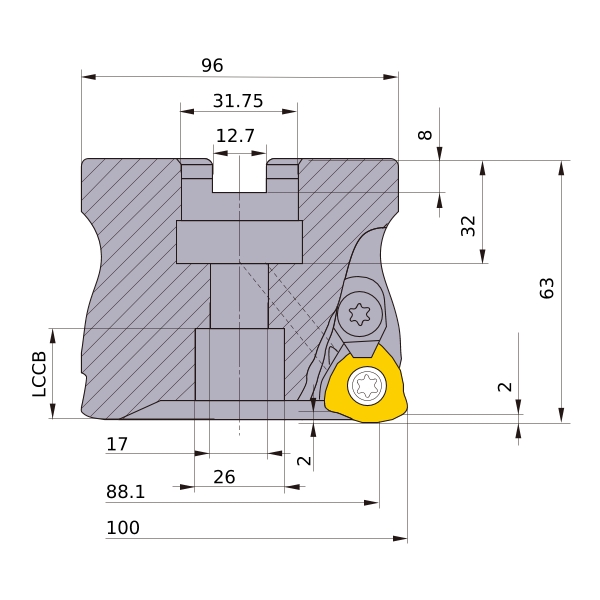

AJX14R10006D

Product Information

  • Suitable for high feed cutting.
  • Standardization of coolant holes.
  • Special insert design with the use of 3 cutting edges.
  • High rigidity due to double clamp structure.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 2
DC 88.1
DCX 100
DCON 31.75
DCSFMS 96
DAH 17
DCCB 26
RMPX 1.2
L8 8
LF 63
CBDP 32
KWW 12.7
APMX 2
GAMP +8°
GAMF -3°
WT 2.4
Peripheral effective cutting edge count: ZEFP 6
2D Model (DXF)
CAD data name Download
AJX14R10006D
CAD
