Face Cutter >APX4000 >APX4000R16010FA

Face Cutter

APX4000


APX4000R16010FA

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

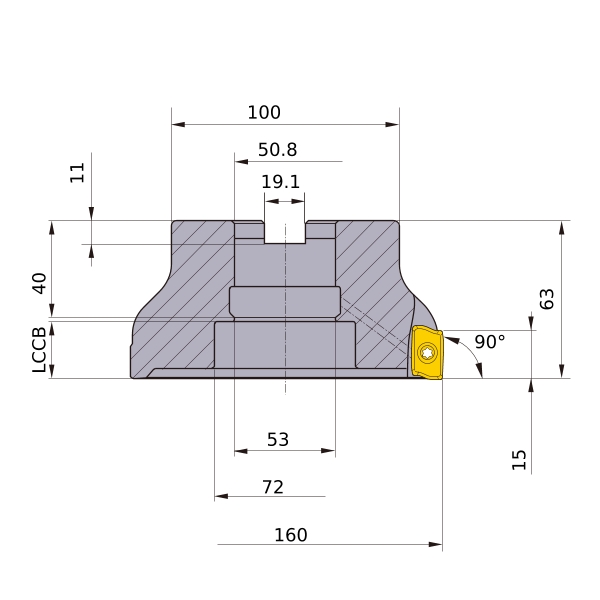

DC 160
DCON 50.8
DCSFMS 100
DAH 53
DCCB 72
KAPR 90°
RMPX 1
L8 11
LF 63
CBDP 40
KWW 19.1
APMX 15
GAMP +22°
GAMF +28°
Peripheral effective cutting edge count: ZEFP 10
RPMX 6100
