Face Cutter >AHX640W >AHX640WR20028K

Face Cutter

AHX640W
（HIGH FEED CUTTING FOR CAST IRON）

AHX640WR20028K

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

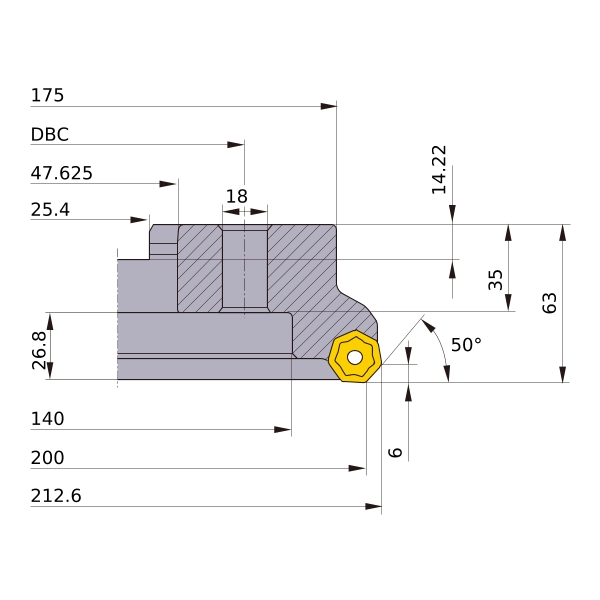

Unit of Length M
DC 200
DCX 212.6
DCON 47.625
DCSFMS 175
DAH 18
DCCB 140
KAPR 50°
L8 14.22
LF 63
CBDP 35
LCCB 26.8
KWW 25.4
APMX 6
GAMP -6°
GAMF -4°
WT 9
Peripheral effective cutting edge count: ZEFP 28
