Face Cutter >AOX445 >AOX445R08006C

Face Cutter

AOX445
（HIGH EFFICIENCY CUTTING FOR CAST IRON）

AOX445R08006C

Product Information

  • Economical 16 corner use. (when depth of cut is 3mm)
  • High efficiency machining from roughing to finishing.
  • Easy operation and cleaning.
  • Octagonal double-sided solid CBN insert.

The actual product may differ from the displayed image.

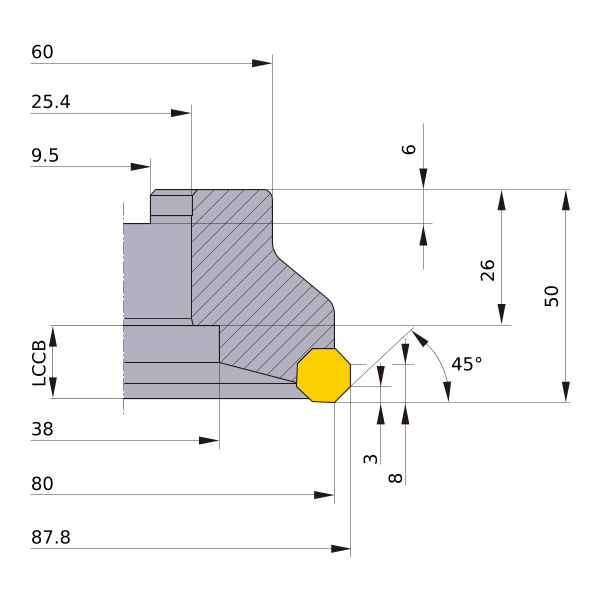

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
A1 3
DC 80
DCX 87.8
DCON 25.4
DCSFMS 60
DCCB 38
KAPR 45°
L8 6
LF 50
CBDP 26
KWW 9.5
APMX 8
GAMP -5°
GAMF -7°
WT 1.2
Peripheral effective cutting edge count: ZEFP 6
RPMX 11000
