Face Cutter >VOX400 >VOX400R10012D

Face Cutter

VOX400
（STRONG EDGE TYPE FOR CAST IRON）

VOX400R10012D

Product Information

  • Vertical inserts with high　strength cutting edge.
  • Economical due to the use of 8 cutting edges.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

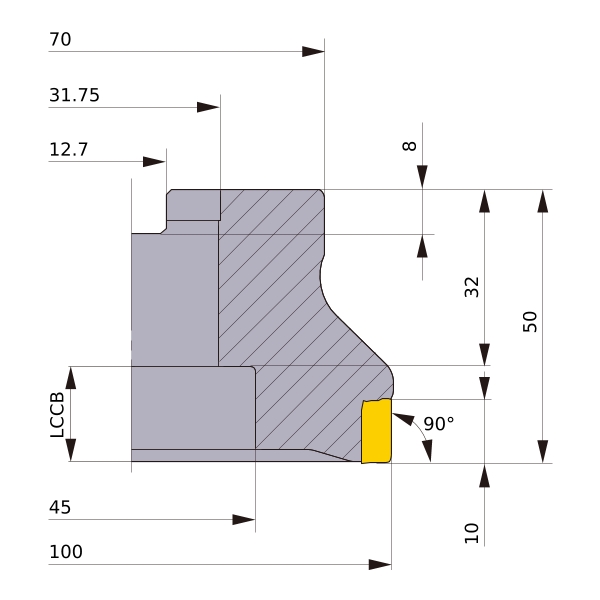

DC 100
DCON 31.75
DCSFMS 70
DCCB 45
KAPR 90°
L8 8
LF 50
CBDP 32
KWW 12.7
APMX 10
GAMP -6°
GAMF -18°
WT 1.4
Peripheral effective cutting edge count: ZEFP 12
