Face Cutter >ASX400_MM >ASX400-080B04R

Face Cutter

ASX400_MM
（GENERAL CUTTING）

ASX400-080B04R

Product Information

  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

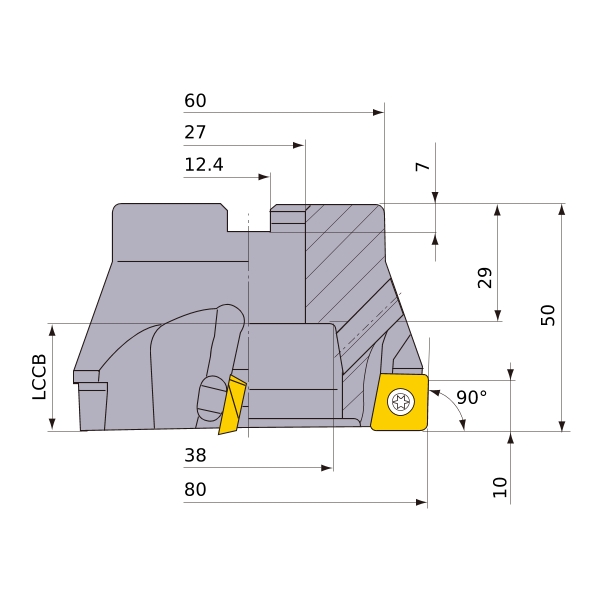

DC 80
DCON 27
DCSFMS 60
DCCB 38
KAPR 90°
L8 7
LF 50
CBDP 29
KWW 12.4
APMX 10
GAMP +11°
GAMF -10°
WT 0.9
Peripheral effective cutting edge count: ZEFP 4
RPMX 14000
