Face Cutter >APX4000_MM >APX4000-125A09RA

Face Cutter

APX4000_MM


APX4000-125A09RA

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

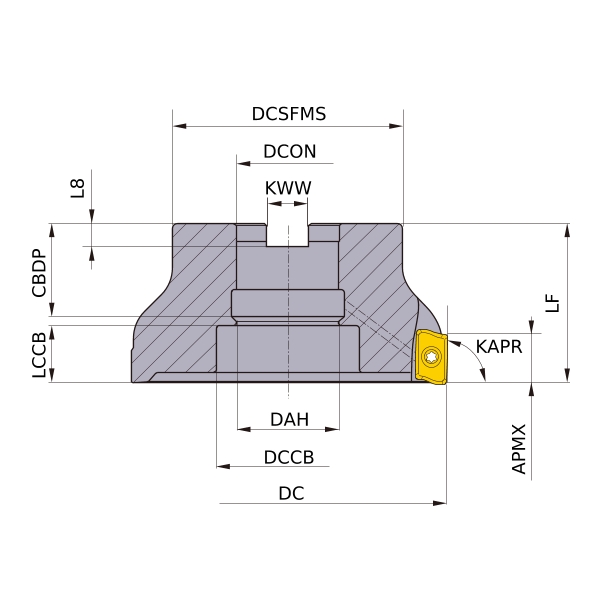

DC 125
DCON 40
DCSFMS 90
DAH 42
DCCB 56
KAPR 90°
RMPX 1
L8 9
LF 63
CBDP 40
KWW 16.4
APMX 15
GAMP +22°
GAMF +27°
WT 3.3
Peripheral effective cutting edge count: ZEFP 9
