Face Cutter >AHX640W_MM >AHX640W-315C28R

Face Cutter

AHX640W_MM
（HIGH FEED CUTTING FOR CAST IRON）

AHX640W-315C28R

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

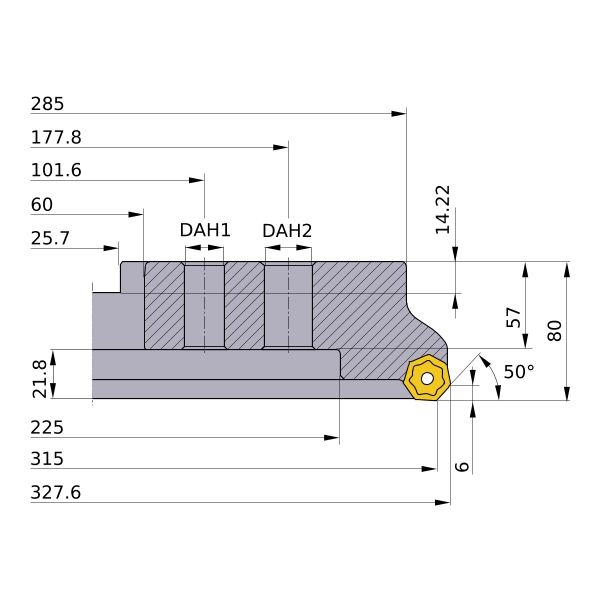

DC 315
DCX 327.6
DCON 60
DCSFMS 285
DAH 18
DCCB 225
KAPR 50°
L8 14.22
LF 80
CBDP 57
LCCB 21.8
KWW 25.7
APMX 6
GAMP -6°
GAMF -4°
WT 31.5
DBC1 101.6
DBC2 177.8
Peripheral effective cutting edge count: ZEFP 28
