Face Cutter >AHX640S >AHX640SR12506EA

Face Cutter

AHX640S
（GENERAL CUTTING）

AHX640SR12506EA

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

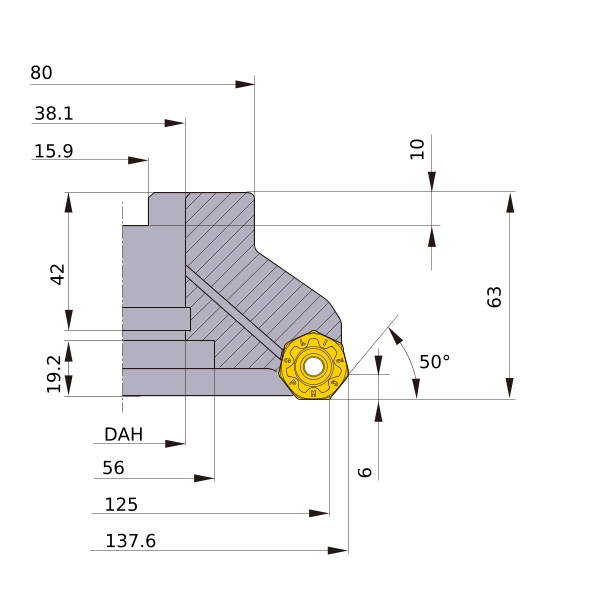

DC 125
DCX 137.6
DCON 38.1
DCSFMS 80
DCCB 56
KAPR 50°
L8 10
LF 63
CBDP 42
LCCB 19.2
KWW 15.9
APMX 6
GAMP -6°
GAMF -5°
WT 3
Peripheral effective cutting edge count: ZEFP 6
