Face Cutter >OCTACUT_MM >OCTACUT0634AR

Face Cutter

OCTACUT


OCTACUT0634AR

Product Information

  • Small insert type.
  • Multi functional milling.
  • standerd insert
  • 20°positive insert.
  • Compatible with 8-corner use insert and round type insert.
  • Capable of multiple functions.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

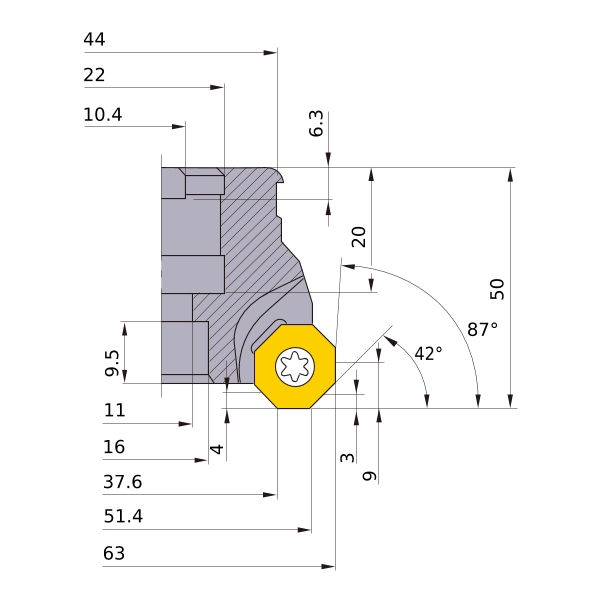

A1 3
AZ 4
DC 51.4
DCX 63
DCON 22
DCSFMS 44
DAH 11
DCCB 16
KAPR 42°
L8 6.3
LF 50
CBDP 20
LCCB 9.5
KWW 10.4
APMX 9
DCINX 37.6
GAMP 13°
GAMF -4°
WT 0.7
Peripheral effective cutting edge count: ZEFP 4
