Mitsubishi Materials Web Catalogue | Products Information | Face Cutter | AXD4000_MM

High spindle speeds possible.
Low resistance inserts.
Multi functional milling.
High spindle speeds possible.
Excellent wall accuracy.

The actual product may differ from the displayed image.

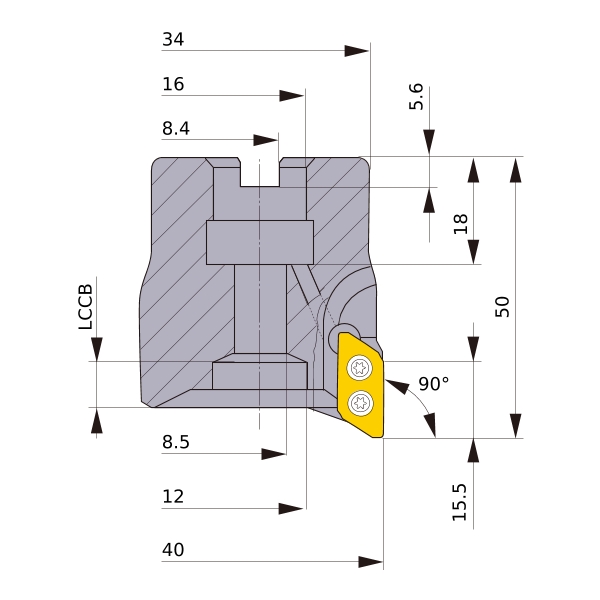

For details, please check the dimensions below.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Hand

R

Stock

Unit of Length

M

DC

40

DCON

16

DCSFMS

34

DAH

8.5

DCCB

12

KAPR

90°

L8

5.6

LF

50

CBDP

18

KWW

8.4

APMX

15.5

GAMP

+14°

GAMF

+21°

WT

0.3

Peripheral effective cutting edge count: ZEFP

2

RPMX

41000
