Face Cutter >AXD4000_MM >AXD4000-063A05RB
AXD4000_MM
(For Aluminium Alloy)
The actual product may differ from the displayed image.

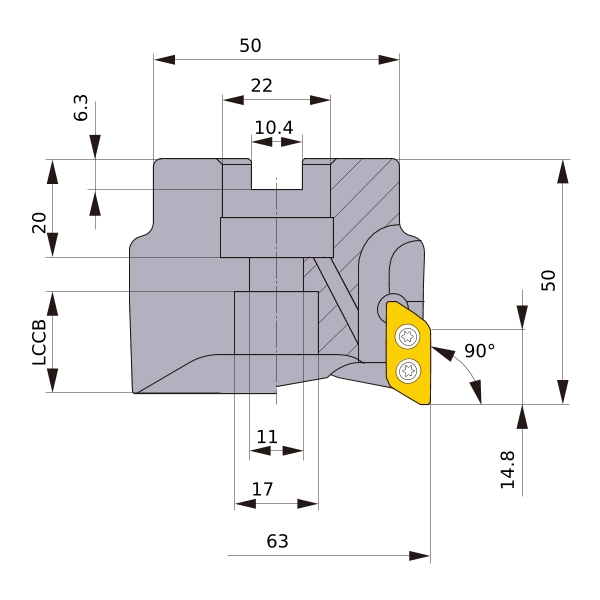

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
DC | 63 |
DCON | 22 |
DCSFMS | 50 |
DAH | 11 |
DCCB | 17 |
KAPR | 90° |
L8 | 6.3 |
LF | 50 |
CBDP | 20 |
KWW | 10.4 |
APMX | 14.8 |
GAMP | +15° |
GAMF | +24° |
WT | 0.6 |
Peripheral effective cutting edge count: ZEFP | 5 |
RPMX | 30000 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
