Face Cutter >FMAX >FMAXR10004DMB

Face Cutter

FMAX
（HIGH FEED MILLING CUTTER FOR FINISHING）

FMAXR10004DMB

Product Information

  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.

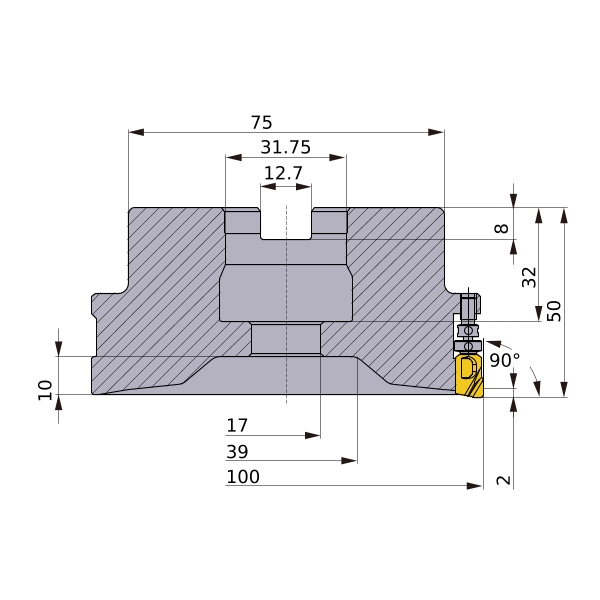

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 100
DCON 31.75
DCSFMS 75
DAH 17
DCCB 39
KAPR 90°
L8 8
LF 50
CBDP 32
LCCB 10
KWW 12.7
APMX 2
GAMP +5°
GAMF 0°
WT 2.01
Peripheral effective cutting edge count: ZEFP 4
RPMX 22000

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition

  • Insert for Rotating Tools

  • Spare Parts
