Face Cutter >AHX440S_MM >AHX440S-100B10AR

Face Cutter

AHX440S_MM
（GENERAL CUTTING）

AHX440S-100B10AR

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

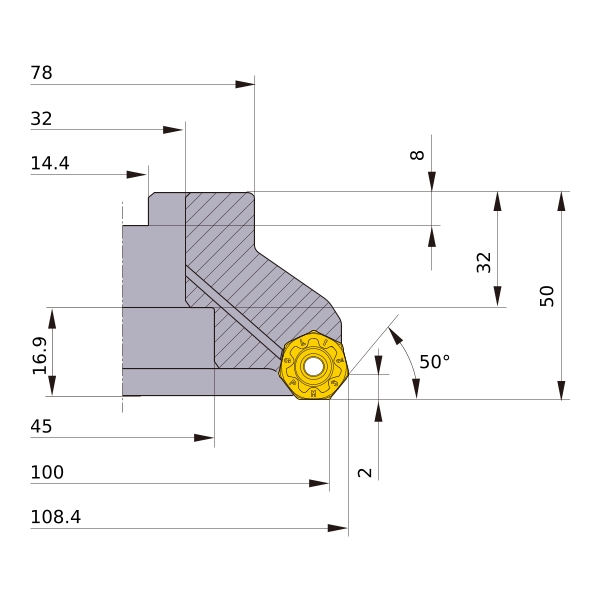

DC 100
DCX 108.4
DCON 32
DCSFMS 78
DCCB 45
KAPR 50°
L8 8
LF 50
CBDP 32
LCCB 16.9
KWW 14.4
APMX 2
GAMP -6°
GAMF -7°
WT 1.6
Peripheral effective cutting edge count: ZEFP 10
