Face Cutter >AHX475S >AHX475SR08006DA

Face Cutter

AHX475S
（GENERAL CUTTING）

AHX475SR08006DA

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

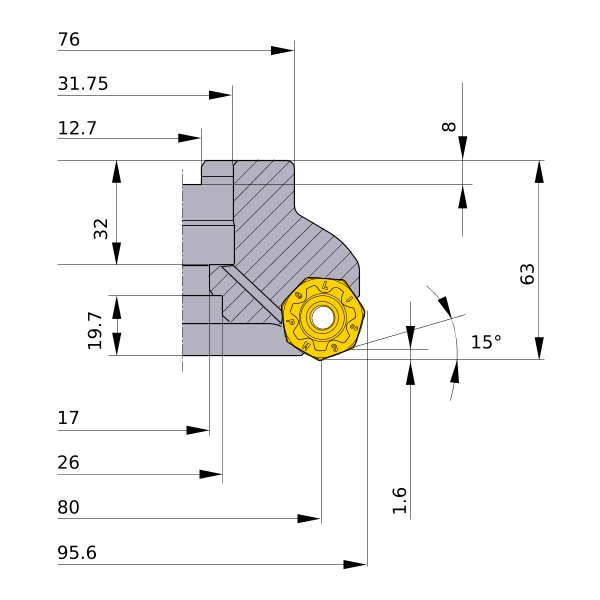

DC 80
DCX 95.6
DCON 31.75
DCSFMS 76
DAH 17
DCCB 26
KAPR 15°
L8 8
LF 63
CBDP 32
LCCB 19.7
KWW 12.7
APMX 1.6
GAMP -6°
GAMF -10°
WT 2
Peripheral effective cutting edge count: ZEFP 6
