Face Cutter >AHX475S >AHX475SR12510EA

Face Cutter

AHX475S
（GENERAL CUTTING）

AHX475SR12510EA

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

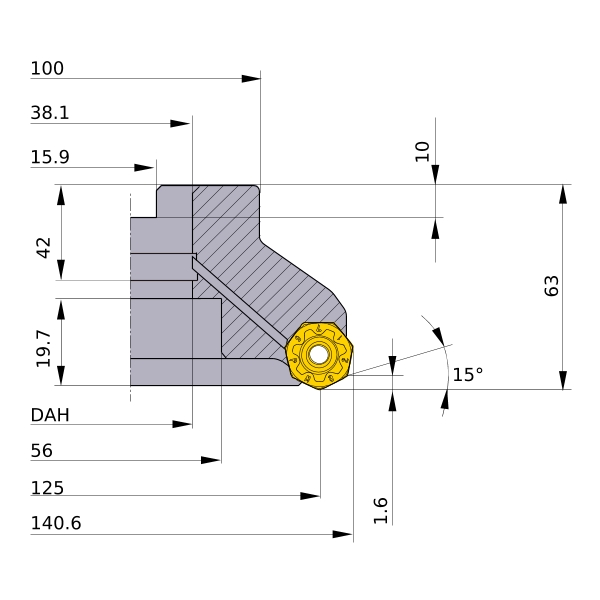

DC 125
DCX 140.6
DCON 38.1
DCSFMS 100
DCCB 56
KAPR 15°
L8 10
LF 63
CBDP 42
LCCB 19.7
KWW 15.9
APMX 1.6
GAMP -6°
GAMF -10°
WT 4
Peripheral effective cutting edge count: ZEFP 10
