Face Cutter >AHX475S_MM >AHX475S-063A05AR

Face Cutter

AHX475S_MM
（GENERAL CUTTING）

AHX475S-063A05AR

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

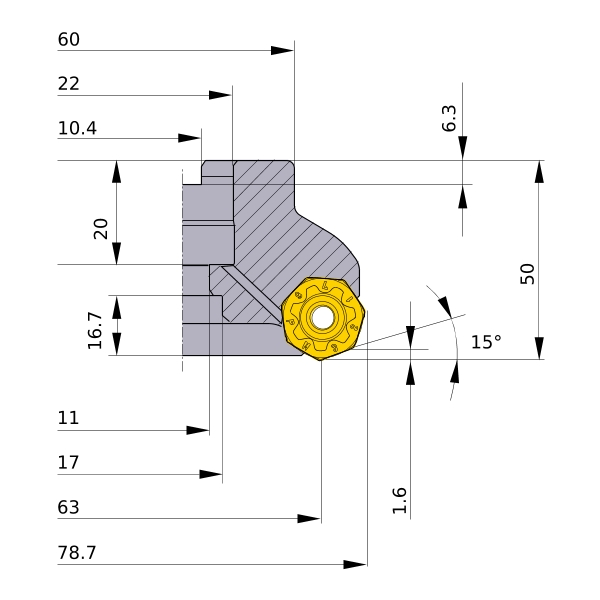

DC 63
DCX 78.7
DCON 22
DCSFMS 60
DAH 11
DCCB 17
KAPR 15°
L8 6.3
LF 50
CBDP 20
LCCB 16.7
KWW 10.4
APMX 1.6
GAMP -6°
GAMF -10°
WT 1
Peripheral effective cutting edge count: ZEFP 5
