Face Cutter >WJX14 >WJX14R08006DA
WJX14
(Double-sided Insert Type High Feed Radius Milling Cutter)

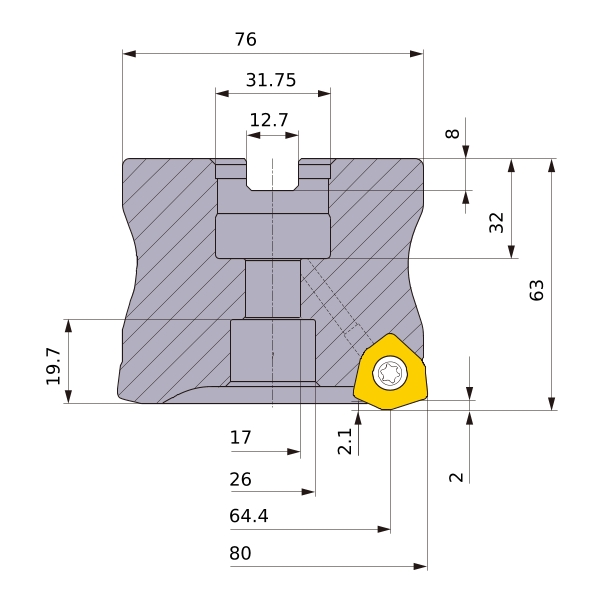

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
AZ | 2.1 |
DC | 64.4 |
DCX | 80 |
DCON | 31.75 |
DCSFMS | 76 |
DAH | 17 |
DCCB | 26 |
RMPX | 2.1° |
L8 | 8 |
LF | 63 |
CBDP | 32 |
LCCB | 19.7 |
KWW | 12.7 |
APMX | 2 |
GAMP | -6° |
GAMF | -10° |
WT | 1.4 |
Cutting item count: CICT | 6 |
Peripheral effective cutting edge count: ZEFP | 6 |
RPMX | 15600 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
