Face Cutter >WJX14 >WJX14R16009FA

Face Cutter

WJX14
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX14R16009FA

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.
  • Excellent sharpness enables reduced cutting noise and provides long tool life

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

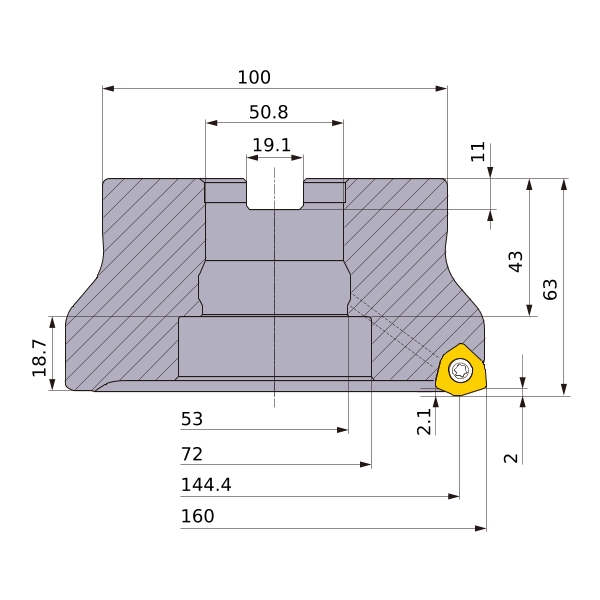

AZ 2.1
DC 144.4
DCX 160
DCON 50.8
DCSFMS 100
DAH 53
DCCB 72
RMPX 0.8°
L8 11
LF 63
CBDP 43
LCCB 18.7
KWW 19.1
APMX 2
GAMP -6°
GAMF -10°
WT 4.5
Cutting item count: CICT 9
Peripheral effective cutting edge count: ZEFP 9
RPMX 9900
