Grooving Others

DPT4
（D Type Boring Head）

DPT4132R

Product Information

  • Groove width 1.25 - 4.7mm
  • Min. cutting diameter: 40mm
  • Pin lock type
  • Exchangeable head type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

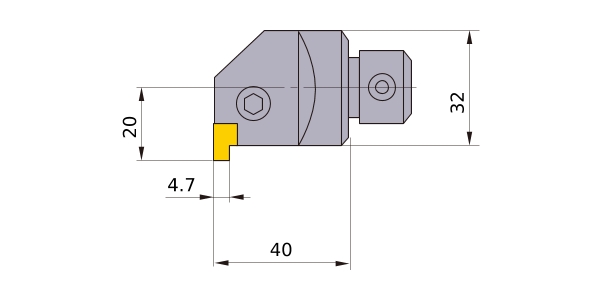

DMIN 40
DCON 32
LF 40
WF 20
CW 4.7
Peripheral effective cutting edge count: ZEFP 1
