Grooving Others >GWS00 >GWSR2525M00-F51
GWS00
(External for Swiss-type Automatic Lathes)
The actual product may differ from the displayed image.

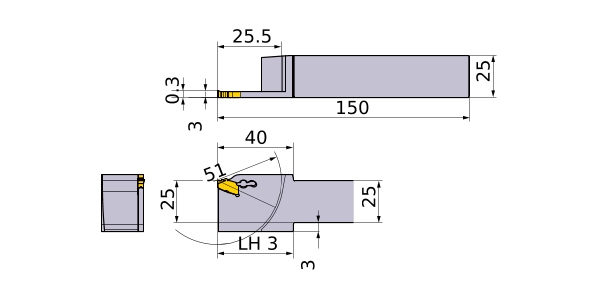

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
CUTDIA | 51 |
B | 25 |
LF | 150 |
LH | 40 |
CDX | 25.5 |
WF | 0.3 |
H | 25 |
HF | 25 |
HBH | 3 |
CW | 3 |
Peripheral effective cutting edge count: ZEFP | 1 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
