Grooving GY Series

GYH90A_B
（90° type holder）

2E1R3E2

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.

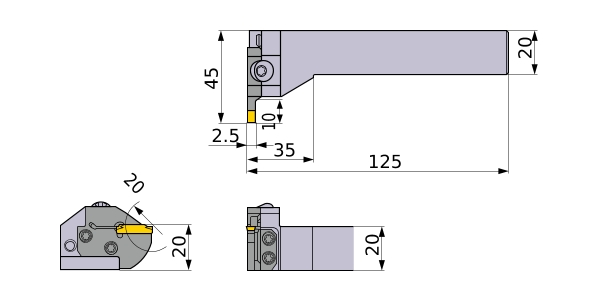

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
CUTDIA 20
B 20
LF 125
LH 35
CDX 10
WF 45
H 20
HF 20
CW 2.5
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHR2020K90-M20L
Modular Blade GYM20LA-E10
2D Model (DXF)
CAD data name Download
2E1R3E2
CAD
