Grooving GY Series >GYH90A_B >2E1R3G1
GYH90A_B
(90° type holder)
The actual product may differ from the displayed image.

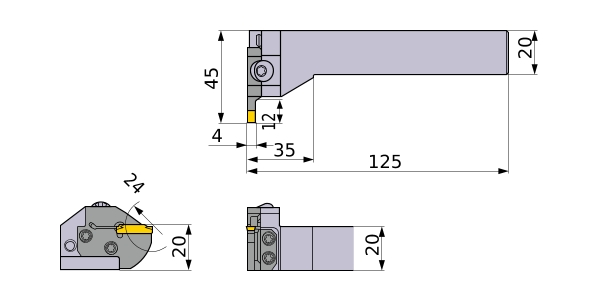

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
CUTDIA | 24 |
B | 20 |
LF | 125 |
LH | 35 |
CDX | 12 |
WF | 45 |
H | 20 |
HF | 20 |
CW | 4 |
Peripheral effective cutting edge count: ZEFP | 1 |
Modular Holder | GYHR2020K90-M20L |
Modular Blade | GYM20LA-G12 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
