Grooving GY Series >GYH90D >5G1R4F12
GYH90D
(90° type holder)
The actual product may differ from the displayed image.

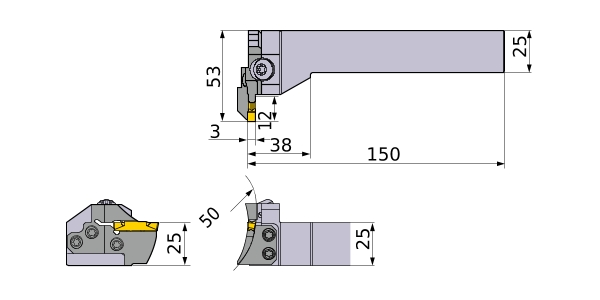

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
DAXN | 40 |
CUTDIA | 50 |
B | 25 |
LF | 150 |
LH | 38 |
CDX | 12 |
WF | 53 |
H | 25 |
HF | 25 |
CW | 3 |
Peripheral effective cutting edge count: ZEFP | 1 |
Modular Holder | GYHR2525M90-M25L |
Modular Blade | GYM25LD-F12-040 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
