Grooving GY Series >GYH00D >4E1R4G11
GYH00D
(00° type holder)
The actual product may differ from the displayed image.

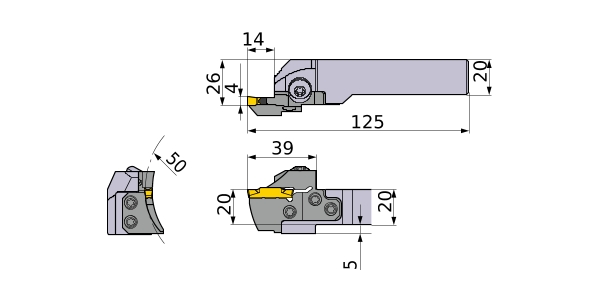

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | R |
Stock | ![]() |
Unit of Length | M |
DAXN | 40 |
CUTDIA | 50 |
B | 20 |
L4 | 60 |
LF | 125 |
LH | 39 |
CDX | 14 |
WF | 26 |
H | 20 |
HF | 20 |
HBH | 5 |
CW | 4 |
Peripheral effective cutting edge count: ZEFP | 1 |
Modular Holder | GYHR2020K00-M25R |
Modular Blade | GYM25RD-G14-040 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
Turning Inserts
