Grooving GY Series

GYS00
（for swiss style lathes）

SY1R9E2

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications

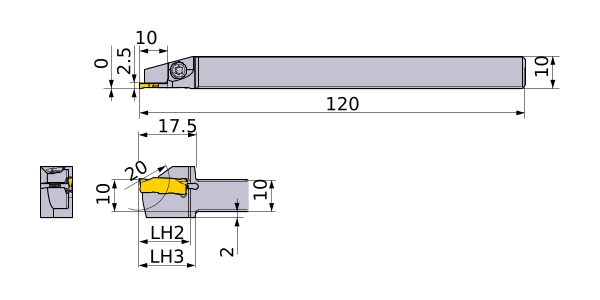

  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
CUTDIA 20
B 10
LF 120
LH 17.5
CDX 10
H 10
HF 10
HBH 2
CW 2.5
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYSR1010JX00-E10

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition

  • Limitation of the Maximum Groove Depth

  • Turning Inserts

  • Spare Parts
