HSK-T Tools >PDJN >H63TH-PDJNL-DX15

HSK-T Tools

PDJN


H63TH-PDJNL-DX15

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

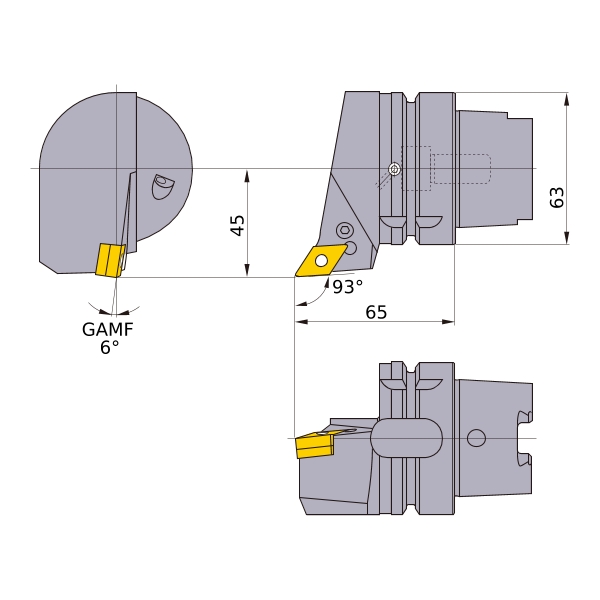

DCONMS 63
KAPR 93°
LF 65
WF 45
WT 1.2
Peripheral effective cutting edge count: ZEFP 1
