Insert for Rotating Tools

XDGX227032PDFR-GL

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade TF15
ANSI XDGX227032PDFR-GL
Stock
Unit of Length M

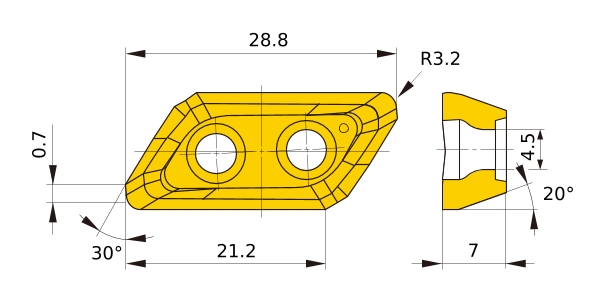

D1 4.5
AN 20°
LE 21.2
L 28.8
BS 0.7
S 7
RE 3.2
Breaker GL
Classification of Grades
Coated・Carbide LC15TF
3D Detail Model (STP,STL)
CAD data name Download
XDGX227032PDFR-GL
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
