Small Tools >CSVH >CSVHR0808

Small Tools

CSVH


CSVHR0808

Product Information

  • For cam type tool posts.
  • Single holder for front turning,back turning,grooving,threading and cutting off operations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
B 8
LF 140
LH 20
HBKW 0
H 8
HF 8
S10 0.1
Peripheral effective cutting edge count: ZEFP 1
Insert Number CSVT

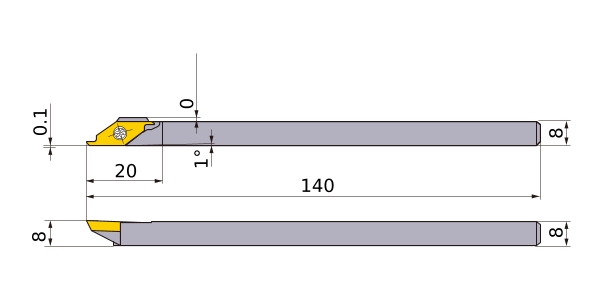

2D Model (DXF)
