Small Tools >FSDUC >FSDUC3220L-11S

Small Tools

FSDUC
（Dimple Bar）

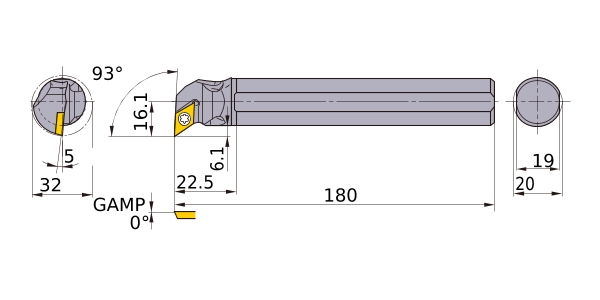

FSDUC3220L-11S

Product Information

  • Employs positive insert 5°,7°,11°.
  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
DMIN 32
DCON 20
KAPR 93°
LF 180
LDRED 22.5
WF 16.1
H 19
WF2 6.1
GAMF 5
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__11T3
2D Model (DXF)
CAD data name Download
FSDUC3220L-11S
CAD
