Small Tools

FSVUB_C
（Dimple Bar）

FSVUB2016L-11S

Product Information

  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • Employs positive insert 5°,7°,11°.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock

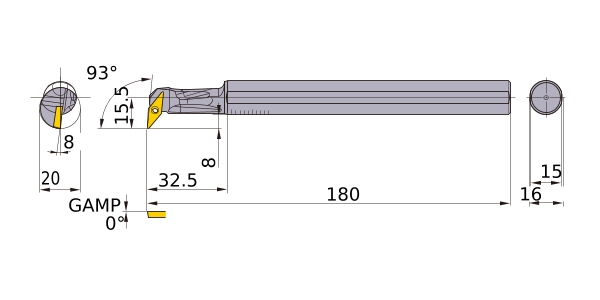

Unit of Length M
DMIN 20
DCON 16
KAPR 93°
LF 180
LDRED 32.5
WF 15.5
H 15
WF2 8
GAMF 8
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1103
