Small Tools >FSVUB_C >FSVUB4032L-16S
FSVUB_C
(Dimple Bar)

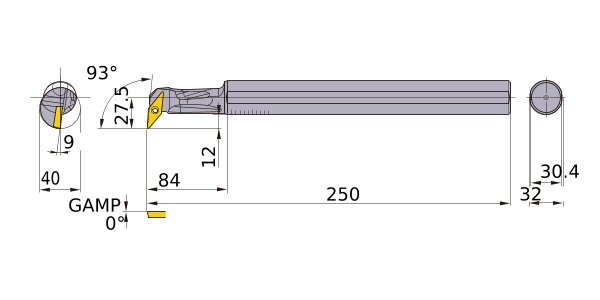

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | L |
Stock | ![]() |
Unit of Length | M |
DMIN | 40 |
DCON | 32 |
KAPR | 93° |
LF | 250 |
LDRED | 84 |
WF | 27.5 |
H | 30.4 |
WF2 | 12 |
GAMF | 9 |
RE | 0.8 |
Peripheral effective cutting edge count: ZEFP | 1 |
Insert Number | VB__1604 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
Turning Inserts
Spare Parts
