Small Tools >FSWUB_P >FSWUP3025R-06S

Small Tools

FSWUB_P
（Dimple Bar）

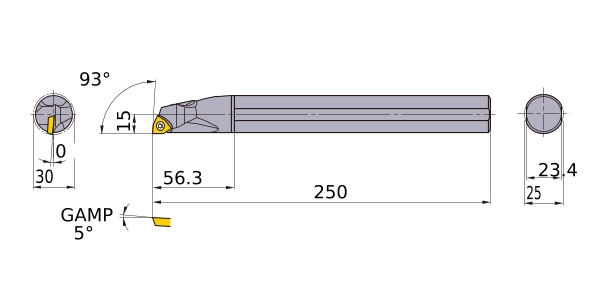

FSWUP3025R-06S

Product Information

  • Employs positive insert 5°,7°,11°.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 30
DCON 25
KAPR 93°
LF 250
LDRED 56.3
WF 15
H 23.4
GAMF 0
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number WP__0603
2D Model (DXF)
CAD data name Download
FSWUP3025R-06S
