Small Tools >CT >CT04RS-M6B

Small Tools

CT
（Micro Mini Twin）

CT04RS-M6B

Product Information

  • The minimum cutting dameter is from 2.2mm.
  • Solid carbide type with 2 cutting edges.
  • Continuous turning from internal turning to face turning.
  • Each boring bar comes in two types, with or without breaker.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Hand R
Stock
Unit of Length M

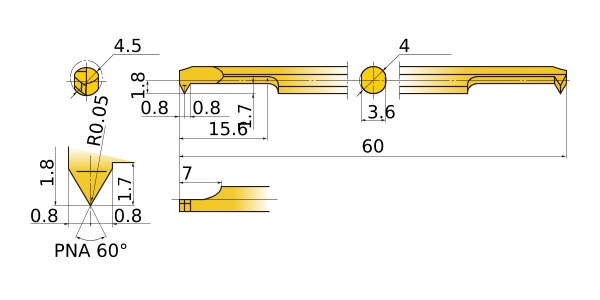

DMIN 4.5
DCON 4
LF 60
LU 15.6
CDX 7
WF 1.8
H 3.6
WF2 1.7
PDX 0.8
RE 0.05
Peripheral effective cutting edge count: ZEFP 1
Classification of Grades
Non-coated・Carbide TF15
2D Model (DXF)
CAD data name Download
CT04RS-M6B
CAD
