Solid End Mills >C2MA >C2MAD2000
C2MA
(End mill, Medium cut length, 2 flute, For aluminium alloy)

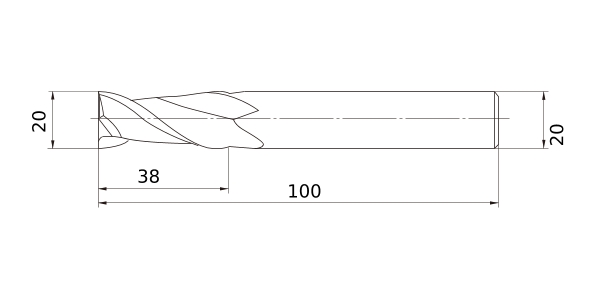

The actual product may differ from the displayed image.
For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Stock | ![]() |
Unit of Length | M |
DC | 20 |
DCON | 20 |
LF | 100 |
APMX | 38 |
FHA | 37.5° |
Peripheral effective cutting edge count: ZEFP | 2 |
Max. Cutting EdgeDiameter Tolerance | 0 |
Min. Cutting EdgeDiameter Tolerance | -0.03 |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
