Solid End Mills >CRN2XLB >CRN2XLBR0030N040S04

Solid End Mills

CRN2XLB
（Ball nose, Long neck, 2 flute, For copper electrodes）

CRN2XLBR0030N040S04

Product Information

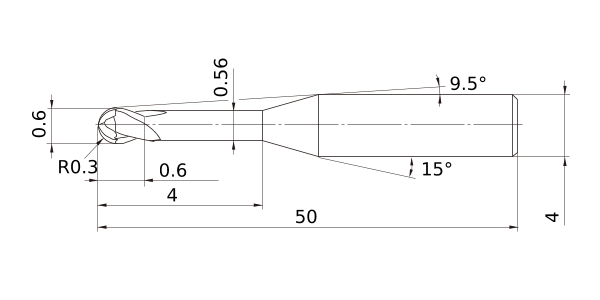

  • 2 flute long neck ball nose end mill with CRN coating for copper electrode machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 0.6
DCON 4
DN 0.56
B2 9.5°
BHTA2 15°
LF 50
LU 4
APMX 0.6
FHA 30°
RE 0.3
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated CRN
2D Model (DXF)
CAD data name Download
CRN2XLBR0030N040S04
CAD
