Solid End Mills

MR
（Roughing end mill, Medium cut length, 4-6 flute）

MRD0900

Product Information

  • 4-6 flute roughing end mill with full radius cutting edge profile for heavy cutting.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

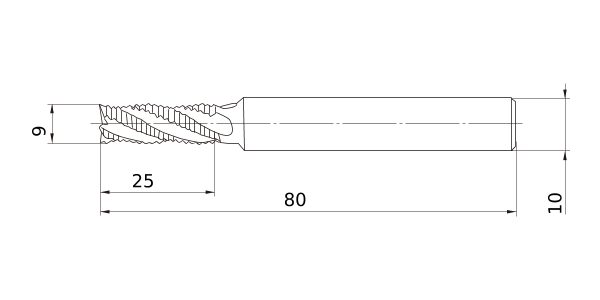

Unit of Length M
DC 9
DCON 10
LF 80
APMX 25
FHA 30°
Peripheral effective cutting edge count: ZEFP 4
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
